m Update graphviz |
|||

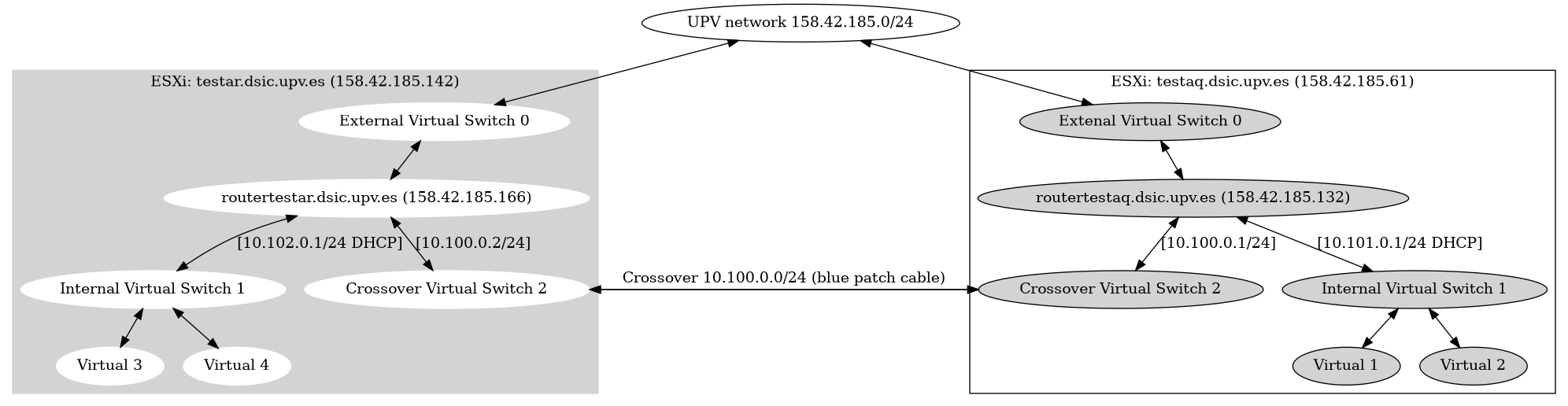

| Line 9: | Line 9: | ||
color=lightgrey; | color=lightgrey; | ||
node [style=filled,color=white]; | node [style=filled,color=white]; | ||
switch2_0 -> routertestar | switch2_0 -> routertestar [ dir=both ] | ||
routertestar -> switch2_1 [ label = "[10.102.0.1/24 DHCP]" ] | routertestar -> switch2_1 [ dir=both label = "[10.102.0.1/24 DHCP]" ] | ||
switch2_1 -> t2_1 | switch2_1 -> t2_1 [dir=both] | ||
switch2_1 -> t2_2 | switch2_1 -> t2_2 [dir=both] | ||
routertestar -> switch2_2 [ label = "[10.100.0.2/24]" ] | routertestar -> switch2_2 [ dir=both label = "[10.100.0.2/24]" ] | ||
label = "ESXi: testar.dsic.upv.es (158.42.185.142)"; } | label = "ESXi: testar.dsic.upv.es (158.42.185.142)"; } | ||
subgraph cluster_1 { | subgraph cluster_1 { | ||
node [style=filled]; | node [style=filled]; | ||
switch1_0 -> routertestaq | switch1_0 -> routertestaq [dir=both] | ||
routertestaq -> switch1_2 [ label = "[10.100.0.1/24]" ] | routertestaq -> switch1_2 [ dir=both label = "[10.100.0.1/24]" ] | ||
routertestaq -> switch1_1 [ label = "[10.101.0.1/24 DHCP]" ] | routertestaq -> switch1_1 [ dir=both label = "[10.101.0.1/24 DHCP]" ] | ||
switch1_1 -> t1_1 | switch1_1 -> t1_1 [dir=both] | ||
switch1_1 -> t1_2 | switch1_1 -> t1_2 [dir=both] | ||
label = "ESXi: testaq.dsic.upv.es (158.42.185.61)"; | label = "ESXi: testaq.dsic.upv.es (158.42.185.61)"; | ||
color=black | color=black | ||
} | } | ||
UPV -> switch2_0 [ label = "" ] ; | UPV -> switch2_0 [ dir=both label = "" ] ; | ||
UPV -> switch1_0 ; | UPV -> switch1_0 [ dir=both ]; | ||
switch2_2 -> switch1_2 [ label = " Crossover 10.100.0.0/24 (blue patch cable) " ]; | switch2_2 -> switch1_2 [ dir=both label = " Crossover 10.100.0.0/24 (blue patch cable) " ]; | ||
switch1_2 -> switch2_2; | switch1_2 -> switch2_2 [ dir=both ]; | ||
routertestar [ label = "routertestar.dsic.upv.es (158.42.185.166)" ] | routertestar [ label = "routertestar.dsic.upv.es (158.42.185.166)" ] | ||
Revision as of 13:02, 27 May 2020
Virtual Environment @ UPV
OpenVPN Client configuration
On the routertestar.dsic.upv.es and routertestaq.dsic.upv.es an OpenVPN server is installed. Users can connect to one of the routers via OpenVPN. A user certificate needs to be created and added to an OpenVPN client configuration. To create a OpenVPN client configuration please follow the following steps:
- Log into
routertestar.dsic.upv.es - Become
rootuser - Read the OpenVPN CA password in
/root/testar-ca-key-password.txt - Run the following command:
openvpn-users.sh - Follow the instructions of the script and give the CA password when asked. 2 OpenVPN configuration files will be created and the certificates will be distibuted to the 2 testar routers
- Copy the generated OpenVPN configurations files from the /root/ directory to your own computer with scp/winscp
- Distribute the OpenVPN configuration files to the end user, so they can import this in their OpenVPN client.
Virtual machines
| 10.101.0.1 | routertestaq | DNS | CPU | Mem | HDD | ........................ | 10.102.0.1 | routertestar | DNS | CPU | Mem | HDD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.101.0.2 | Windows10 Guy01 | guy10.esx.testar.org | 2 | 8GB | 128GB | 10.102.0.2 | Windows10 Ad Mulders 01 | admulders01.esx.testar.org | 2 | 8GB | 128GB | |
| 10.101.0.3 | Windows10 Carlo Sengers 01 | carlosengers01.esx.testar.org | 2 | 8GB | 128GB | 10.102.0.3 | Windows 10 Ad Mulders 02 | admulder02.esx.testar.org | 2 | 8GB | 128GB | |
| 10.101.0.4 | Windows10 Carlo Sengers 02 | carlosengers02.esx.testar.org | 2 | 8GB | 128GB | 10.102.0.4 | windows 10 master | windows10-master.esx.testar.org | 2 | 8GB | 128GB | |
| 10.101.0.5 | Windows 10 Ad Mulders 05 | admulders05.esx.testar.org | 2 | 8GB | 128GB | 10.102.0.5 | buhos | buhos.esx.testar.org | 4 | 8GB | 128GB | |
| 10.101.0.6 | Windows 10 Ad Mulders 06 | admulders06.esx.testar.org | 2 | 8GB | 128GB | 10.102.0.6 | Windows 10 Ad Mulders 03 | admulders03.esx.testar.org | 2 | 8GB | 128GB | |
| 10.101.0.7 | Windows 10 Ad Mulders 07 | admulders07.esx.testar.org | 2 | 8GB | 128GB | 10.102.0.7 | Windows 10 Ad Mulders 04 | admulders04.esx.testar.org | 2 | 8GB | 128GB | |
| 10.101.0.8 | Windows 10 Ad Mulders 08 | admulders08.esx.testar.org | 2 | 8GB | 128GB | .. | ||||||
| .. | ||||||||||||
| 10.101.0.11 | testar-demo1011 | 10.102.0.11 | testar-demo2011 | |||||||||
| .. | .. | |||||||||||
| 10.101.0.20 | testar-demo2020 |
10.102.0.25 | testar-demo2025
|
|||||||||
| 10.101.0.247 | Windows10
Fernando |
