<strong>MediaWiki has been installed.</strong>

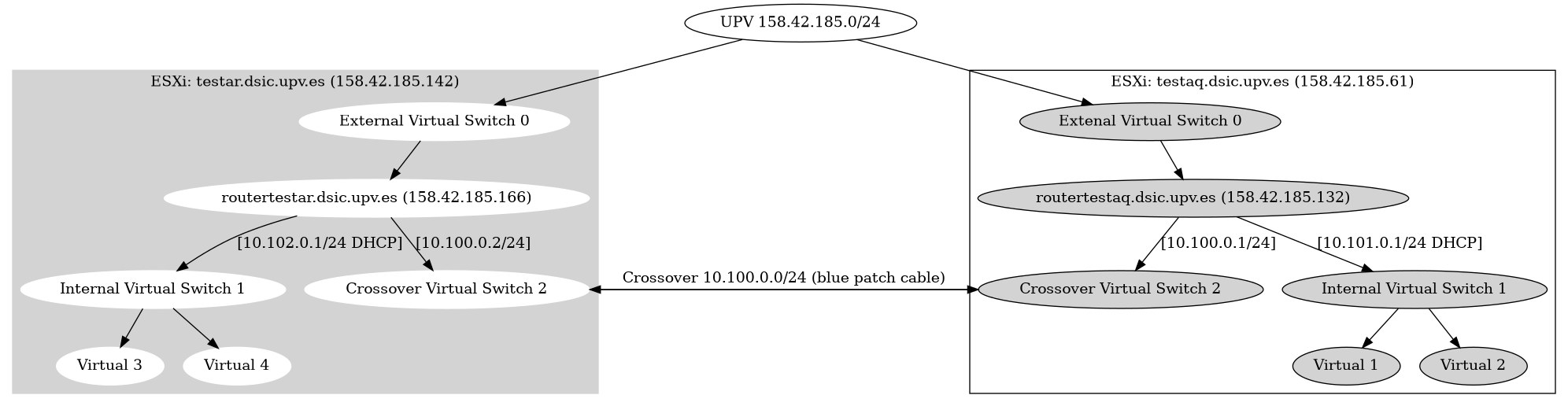

<graphviz>
digraph G {


subgraph cluster_0 {
style=filled;
color=lightgrey;
node [style=filled,color=white];
switch2_0 -> routertestar
                routertestar -> switch2_1 [ label = "[10.102.0.1/24 DHCP]" ]
                switch2_1 -> t2_1
                switch2_1 -> t2_2
                routertestar -> switch2_2 [ label = "[10.100.0.2/24]" ]
label = "ESXi: testar.dsic.upv.es (158.42.185.142)"; }
subgraph cluster_1 {
node [style=filled];
switch1_0 -> routertestaq
                routertestaq -> switch1_2 [ label = "[10.100.0.1/24]" ]
                routertestaq -> switch1_1  [ label = "[10.101.0.1/24 DHCP]" ]
                switch1_1 -> t1_1
                switch1_1 -> t1_2
label = "ESXi: testaq.dsic.upv.es (158.42.185.61)";
color=black
}
UPV -> switch2_0 [ label = "" ]  ;
UPV -> switch1_0 ;
switch2_2 -> switch1_2 [ label = "    Crossover 10.100.0.0/24 (blue patch cable)    " ];
        switch1_2 -> switch2_2;
        routertestar [ label = "routertestar.dsic.upv.es (158.42.185.166)" ]
routertestaq [ label = "routertestaq.dsic.upv.es (158.42.185.132)" ]
        UPV [shape=ellipse label = "UPV 158.42.185.0/24"];
        switch1_0 [ label = "Extenal Virtual Switch 0" ]
        switch2_0 [ label = "External Virtual Switch 0" ]
        switch1_1 [ label = "Internal Virtual Switch 1" ]
        switch2_1 [ label = "Internal Virtual Switch 1" ]
        switch1_2 [ label = "Crossover Virtual Switch 2" ]
        switch2_2 [ label = "Crossover Virtual Switch 2" ]
        t1_1 [ label = "Virtual 1" ]
        t1_2 [ label = "Virtual 2" ]
        t2_1 [ label = "Virtual 3" ]
        t2_2 [ label = "Virtual 4" ]
}
</graphviz>
